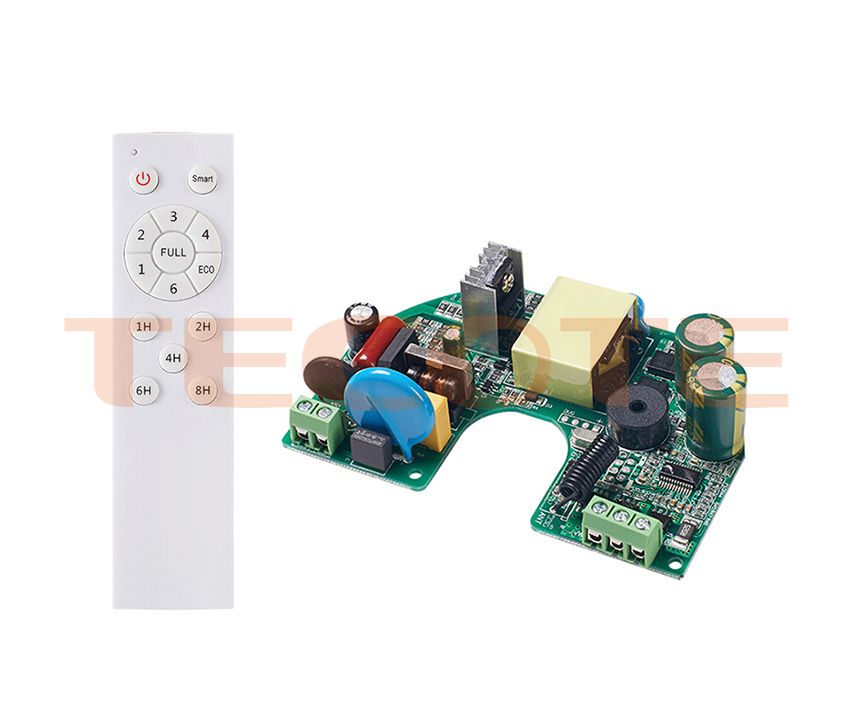

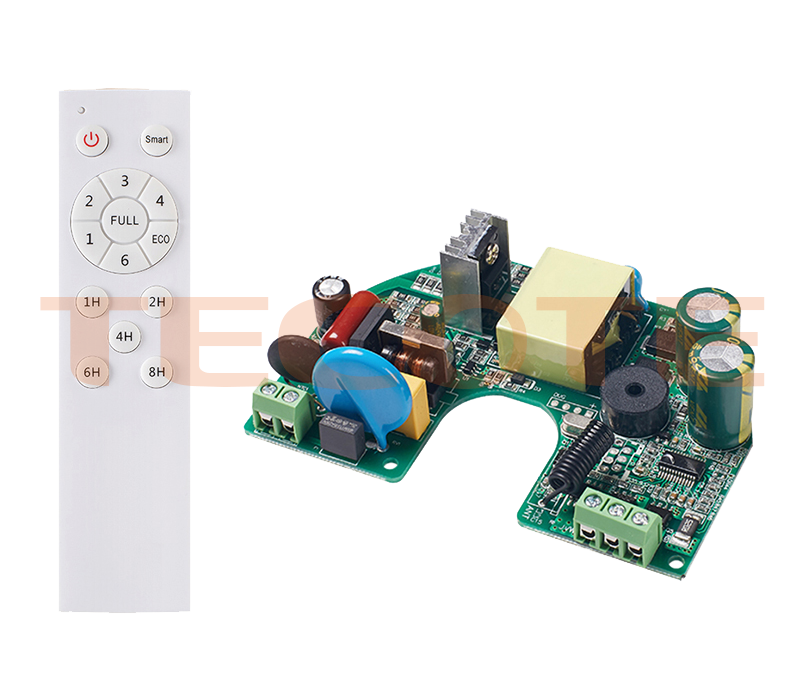

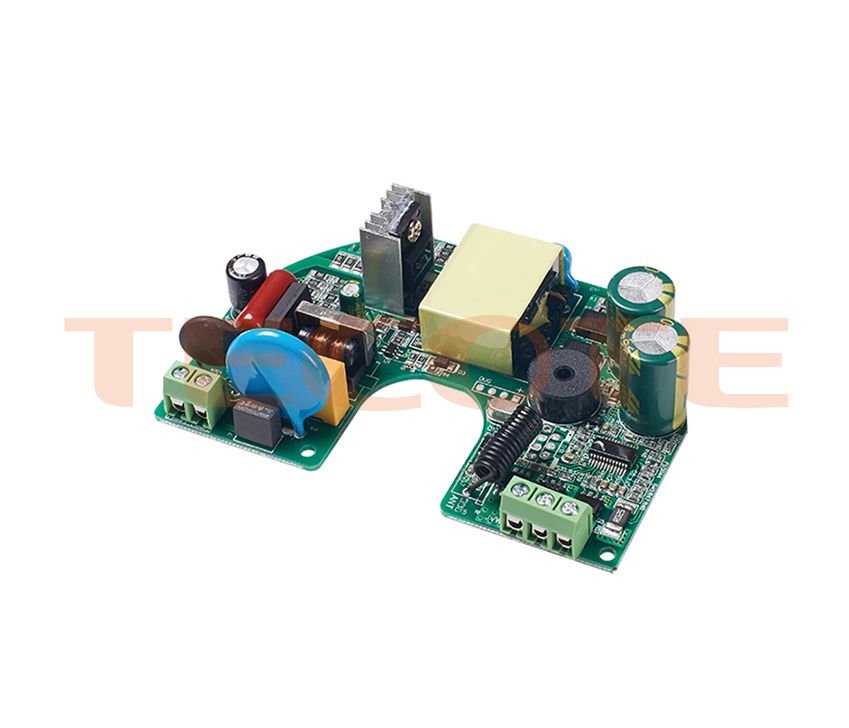

24V, 1.5A BLDC ceiling fan PCBA controller with SMPS

Model No.: TC-PW209U-RF

Specifications:

Rated power: 36W

Rated input: AC220V

Input range: AC90-300V

Rated output: DC24V, 1.5A

RPM: 120-400RPM（48 inch blade)

Surge: 4KV

Efficiency: >86%

PFC>0.96

THD<8%

Features:

Control way: Sin wave control, FOC

Hall sensor: Senseless

Speed control: RF 433MHz

Forward/Reverse function: Yes

SMPS main protection: Under voltage protection, Over current protection, Short circuit protection.

Motor control Protection: Current limit Protection, Over current Protection, Under voltage Protection, Over voltage Protection, Phase loss protection, Anti-reverse protection, Anti-lock protection
