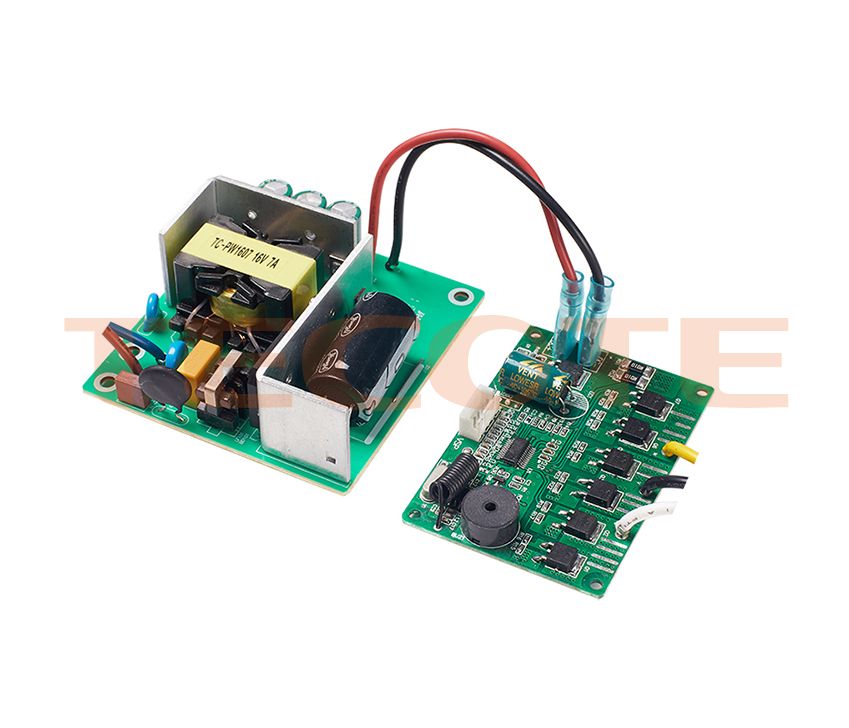

12V ACDC Dual input pedestal fan controller, 100W/120W,high PFC , RF control, ACDC in 2pcs

Model No.: TC-PW1607/LF1607

Specifications:

Rated power: 100W/120W

Rated input: AC220V

Input range: AC90-290V/DC7-20V

Rated output: DC15V,7A/8A

RPM: 200-1500RPM

Surge: 4KV

Efficiency >87%

PFC >0.97 THD:<8%

Features:

Control way: Sin wave control, FOC

Hall sensor: Senseless

Speed control: RF 433MHz

Forward/Reverse function: Yes

SMPS main protection: Under voltage protection, Over current protection, Short circuit protection.

Motor control protection: Current lImit Protection, Over current Protection, Under voltage Protection, Over voltage Protection, Phase loss protection, Anti-reverse protection, Anti-lock protection
