How BLDC Ceiling Fans Intelligently Tame Large Inertia Blades

Have you ever noticed that when an old-fashioned ceiling fan starts up, there is always a dull "buzzing" sound, and sometimes it even has a hint of disturbing shaking? Nowadays, many new ceiling fans that adopt BLDC technology can always start to rotate quietly and run so smoothly that people almost forget their existence.

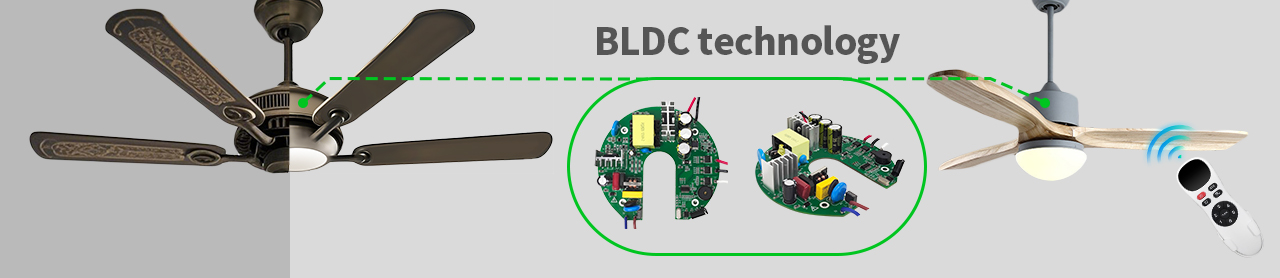

The difference here is far more than just replacing it with a more advanced motor. The true mystery lies in that unremarkable control board (PCBA), where the ingenious algorithms running within it, like an experienced "veteran driver", silently control the entire system.

When modern motors encounter ancient physical challenges

The BLDC (brushless DC) motor itself, with its high efficiency, low noise and precise control capabilities, provides an excellent hardware foundation for the upgrade of ceiling fans. However, the physical characteristics of ceiling fans - those long and heavy blades - pose unique challenges.

These blades rotate like a huge top with extremely high inertia. This makes it very difficult to stop once it has turned steadily, but it also means that starting it requires extra effort. If you give it a forceful push like a traditional motor, the sudden torque impact will not only consume a lot of electricity but also generate noise and mechanical pressure, shortening its lifespan.

In addition, each physical structure has its own inherent vibration frequency. At a certain specific speed range, the rotation rhythm of a ceiling fan may precisely be in sync with the ceiling or its own structure, causing resonance and resulting in a distinct humming sound and swaying.

The tenderness and wisdom of algorithms

So, how does the "brain" of BLDC ceiling fans solve these problems?

The answer lies in a control strategy full of foresight. At startup, the algorithm does not command the motor to sprint at full speed but guides it to accelerate slowly along an extremely smooth curve, just like an experienced driver smoothly releasing the clutch and gently stepping on the accelerator. This process is called "soft start", which silently overcomes the static friction and huge inertia of the blades, making it almost impossible for you to pinpoint exactly when it starts to rotate.

As for the annoying resonance points, engineers have come up with a clever "detour" plan. Through testing, they identified the narrow speed range that was prone to causing shaking and designated it as a "forbidden zone" in the control program. When you adjust the wind speed and the rotational speed needs to pass through this area, the algorithm will smartly make it skip quickly instead of stopping. For you, it's just a sense that the wind speed is constantly changing. However, for the stability and lifespan of the fan, this is a crucial design.

So, what's the difference between this and my floor fan?

You might wonder, if my floor fan also uses a BLDC motor, is it the same? Here is an interesting and essential difference.

We can understand it this way: Ceiling fans follow a "torque first" thinking mode. Its core task is to maintain the constant rotation of a heavy object, so the control strategy focuses more on providing continuous and stable force, and specifically addresses the soft start and resonance problems caused by large inertia.

Floor fans, on the other hand, prioritize wind speed. Its blades are light and have low inertia, making start-up and speed regulation much easier. Therefore, the control algorithm is more focused on quickly responding to your instructions, precisely adjusting the softness and strength of the wind force, and simulating the randomness of natural wind. It is more like skillfully waving a light fan.

An outstanding BLDC ceiling fan is not merely an upgrade of hardware, but a profound systematic project that combines software and hardware. Through its inherent algorithmic wisdom, it gently masters the inertia of physics and ultimately silently brings a sense of tranquility, stability and efficiency into our lives.
