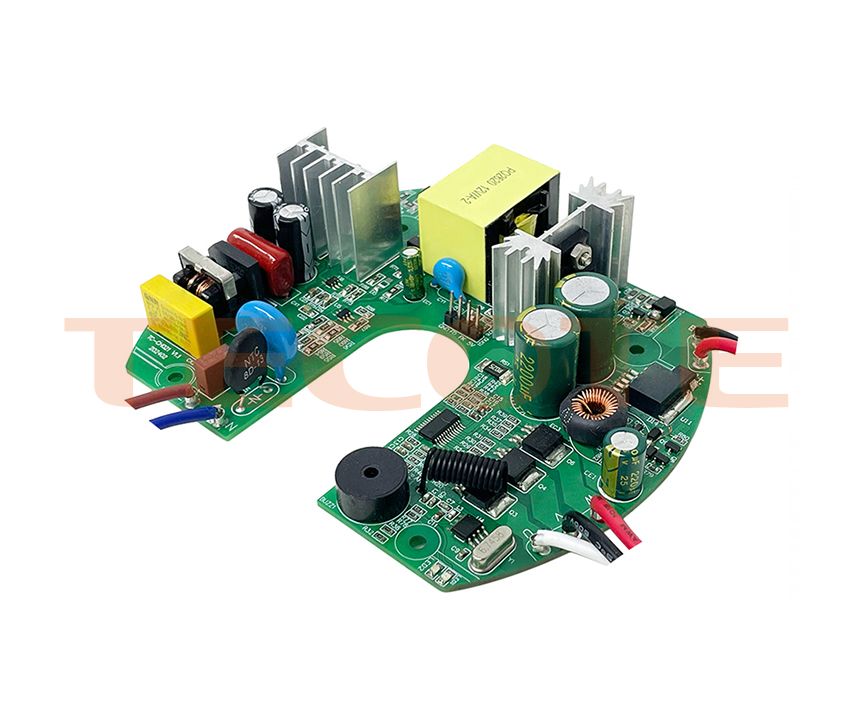

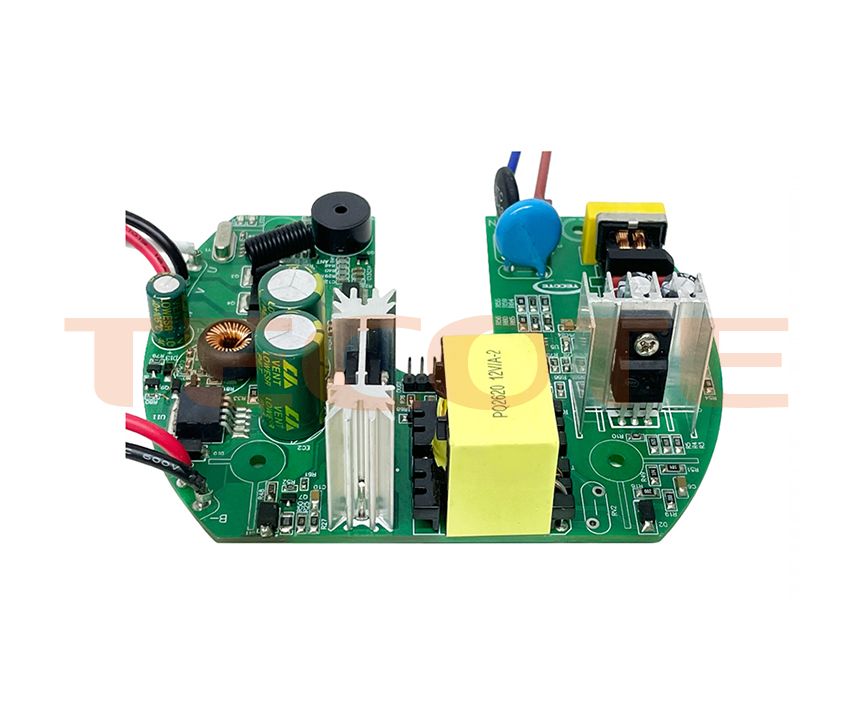

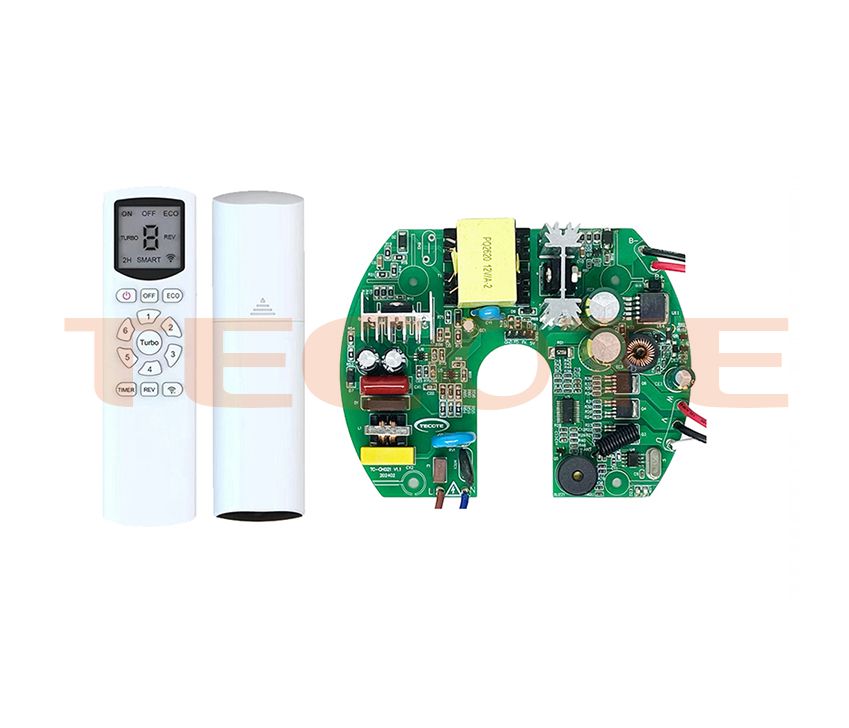

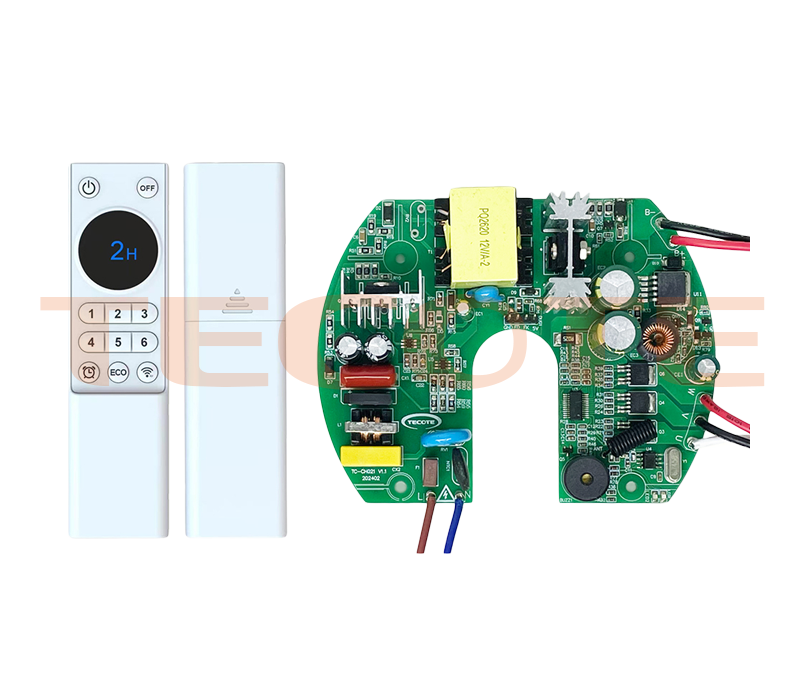

12V Rechargeable BLDC Ceiling Fan Controller

Model No.: CH021

12V Rechargeable BLDC ceiling fan controller, 60W, high PFC , RF control.

Specifications:

Rated power: 60W

Rated input : AC220V

Input range: AC90-290V/DC7-20V

Rated output: DC15V,3.5A

RPM: 300-400RPM（56 inch blade)

Surge: 4KV

Efficiency >87%

PFC >0.97 THD:<8%

Features:

Control way: Sin wave control, FOC

Hall sensor: Senseless

Speed control: RF 433MHz

Forward/Reverse function: Yes

SMPS main protection: Under voltage protection, Over current protection, Short circuit protection.

Motor control protection: Current lImit Protection, Over current Protection, Under voltage Protection, Over voltage Protection, Phase loss protection, Anti-reverse protection, Anti-lock protection
